DISCONTINUED
Quince

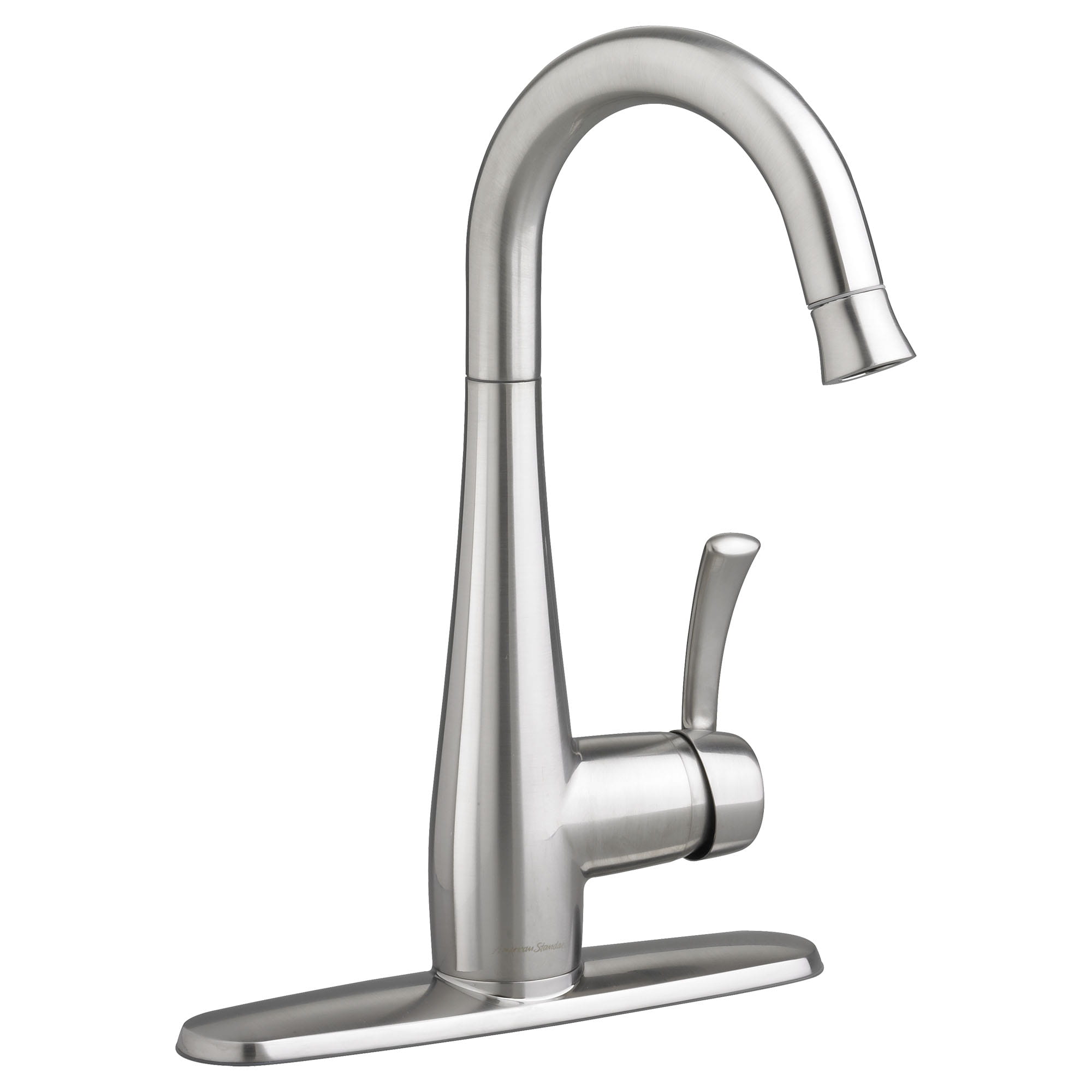

Quince® Single-Handle Pull-Down Dual-Spray Bar Faucet 2.2 gpm/8.3 L/min
List Price:
List Price:
- Spout height 14-1/8" (359mm)
- Spout clearance 9-3/4" (249mm)
- Braided flexible supply hoses with 3/8" compression connectors
DISCONTINUED
Product Description
Quince
Quince® Single-Handle Pull-Down Dual-Spray Bar Faucet 2.2 gpm/8.3 L/min
Features
- Spout height 14-1/8" (359mm)
- Spout clearance 9-3/4" (249mm)
- Braided flexible supply hoses with 3/8" compression connectors
- Metal Lever Handle
- Ceramic Disc Valve Cartridge: Assures smooth, precise valve control and a lifetime of drip free, maintenance-free performance.
- Memory Position Valving: Allows user to turn valve on and off at preferred temperature setting without readjusting handle position each time.
- Lead Free: Faucet contains equals or less than 0.25% total lead content by weighted average.
- Integral Check Valves: Prevents back flow.
Innovations
ADA Compliant
Meets the Americans with Disabilities Act guidelines and ANSI A117.1 requirements for accessible and usable building facilities - check local codes.
Specifications
-
Style Specifications
Color/Finish STAINLESS STL Faucet Type Pull Down Fitting Features Washerless,Ceramic Disk Valves,Detachable Hose Features Not Applicable,Washerless,Ceramic Disk Valves,Detachable Hose,Pull Down Fitting Material Zinc -
Technical Specifications
Dimensions 358.77,3.15,209.55,255.59 Fitting Connection Size 9.52 Fitting Handle Height 139.70 Fitting Hose Length 533.40 Fitting Max Deck Thickness 76.20 Fitting Max Deck Thickness with Escutcheon 57.15 Fitting Spout Reach 163.51 Fitting Swivel Degrees 150 Fitting Valve Material Ceramic Battery Weight Not Applicable -
Other Specs
Warranty Limited Lifetime Warranty Battery Weight Not Applicable
Parts for this product
Following are the list of products or parts which you can also add to your list along with the product, you can also download the parts diagram by clicking on the Download Repair Parts Diagram button
